Some decisions in life are bare of any obvious logic



Here's one of these things that's not explicitely mentioned in the manual or on the plans but that should not be forgotten.

The F-7101 gear attach doublers are installed on both the RV7 and RV7-A version. On DWG28, there is an instruction to enlarge a pilot hole to 1inch for the fuel line pass through rubber grommet.

Since the F-7101 butts at the same location on the inside, the pilot hole there also needs to be cut to 1 inch as the fuel line will also need to penetrate the side of the aircraft at that point.

Some caution here. I read on many sites that some builders just cut the 1 inch hole on the F-7101 using a 1 inch cutter and go with that. They found out that there are alignment problems if you do that.

There for (and also because I don't have a 1inch cutter I admit), I decided to follow another methode which is a bit more "crafts work" but gives excellent result.

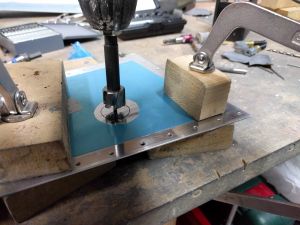

It started bu cutting with the largest cutter in my rotacut set which is still way undersize of 1 inch just using the pilot hole.

I then removed all my auxilliary longerons and the bottom longeron from the side skin and peeled back the side skin.

The reason I did this is because I want to line up and mark with a sharpie pen the already existing enlarged hole in the side skin with the F-7101 "to be" cut.
Since the F-7101 normally sits on top of the longerons, that would not be possible. I wan't both skins to butt to eachother in order to make a nice copy-drawing.

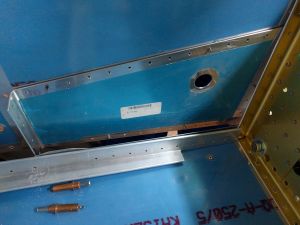

In the picture below, you see that the F-7101 can easily be clecoed to the side skin if you pull it away.

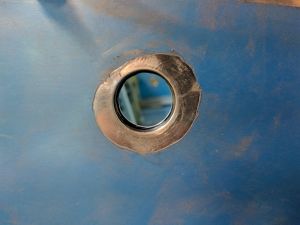

So now this is the view from the outside. I can easily transfer the hole of the side skin on the F-7101 remaining surface.

Once that is done, I used a dremel tool to cut off the major parts and finished it off by hand with a small rounded key file regularily measuring with a caliper for 1".

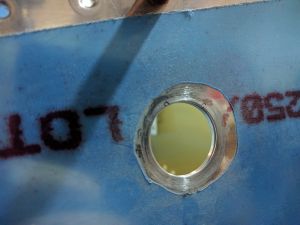

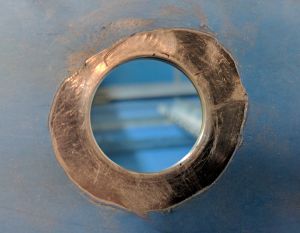

Fitted it in place again "et voila" a nice match.

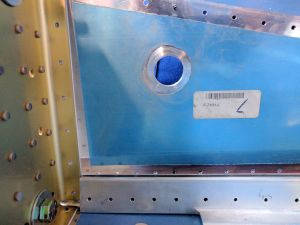

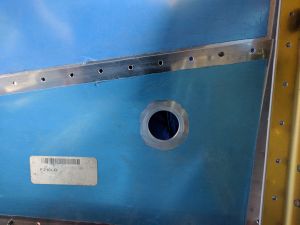

View from the inside.

Did the same trick then on the left side and got a similar good result.



One thing that I didn't found immediatly is the question if the rubber grommet is put over both holes at once, or if there is only a rubber grommet in the first and the second hole is left open, of if both holes take a rubber grommet.

I checked out some builder sites and it seems that both holes take a rubber grommet. That will be fun to install once I make the fuel lines as it looks like a very thight fit.

Another option I discovered is on Dan Checkoway's site. He has cut out some lightning holes from the F-7101's. After all, we are not building an RV7-A and these parts don't look like being structural for an RV-7 and this is beefy 063 material.

Couple of ounces here and there... Still thinking about it and will decide .

The more I look at the reassembled place, the more stuff I found that I still need to do before priming. Discovered that I still have not deburred and dimpeled the bagagge compartment bulkhead and covers.
Also found out I forgot to countersink the forward #30 holes that attach to the steel brackets. At least I know now why the fit of the side skin to the longerons looked so horrible :)
